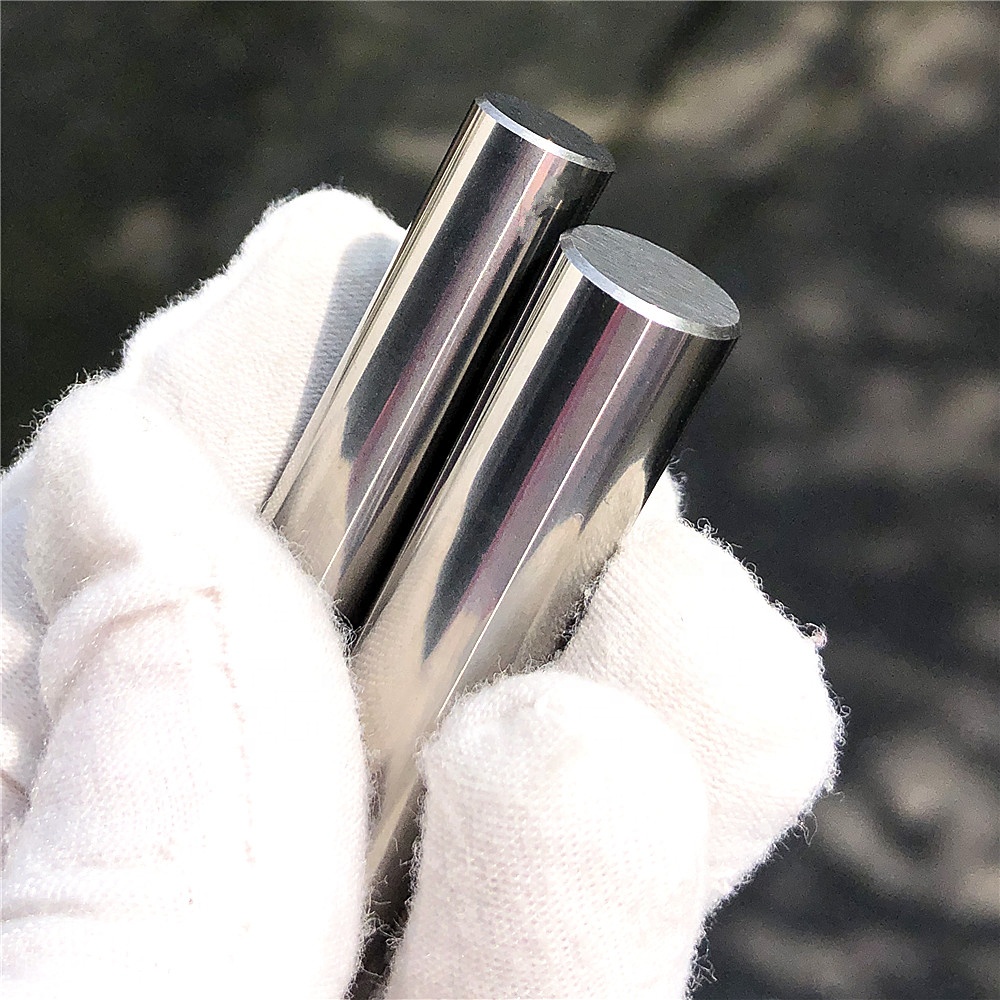

YL10.2 Tungsten Carbide Rod
YL10.2 cemented carbide round bar is a kind of alloy material with high hardness
and high strength, which is made of cemented carbide (WC) as the main raw material,
plus other precious metals and bonded phases by powder metallurgy. Tungsten carbide
rod is widely used in the field of national production and processing.
Basic Introduction of Carbide Rod
Product name: YL10.2 cemented carbide round bar
Grain size: 0.8um
Density: 14.42g/cm3
Hardness: 1600HV30; 91.5HRA
Applications: tungsten carbide round bar is widely used in micro drills in PCB industry,
electrode rods in photoelectric communication industry, cemented carbide drills in
machining industry, drill handles, tips, push rods, wear-resistant precision parts, are
the preferred high-quality materials for integral CNC milling cutters and drilling tools
with holes.
Physical Parameters of Cemented Carbide Rod
Cobalt content: 10% Co
Grain size: 0.8um
Density: 14.42g/cm3
Hardness: 1600HV30; 91.5HRA
Bending strength: 4000N/mm; 580.0KPSI

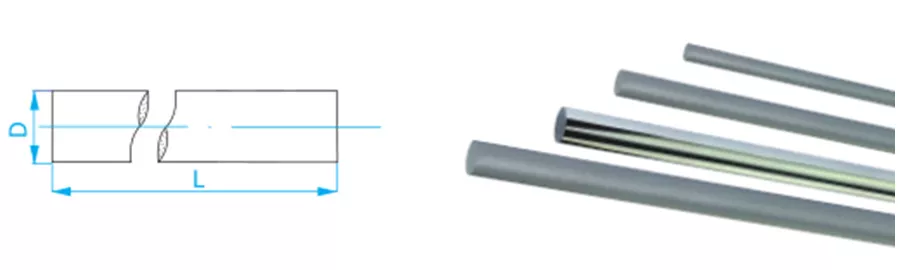

Specifications and Dimensions of Carbide Rod
Just list some standard dimensions FYI. Cut-to-length carbide rods are also available.
Type
D(mm)
Tol. of diameter(mm)
L(mm)
Tol. of length(mm)
Φ2.0x330
2.0
+0.40/+0.20
330
0~+5.00
Φ2.5x330
2.5
+0.40/+0.20
330
0~+5.00
Φ3.0x330
3.0
+0.40/+0.20
330
0~+5.00
Φ3.5x330
3.5
+0.40/+0.20
330
0~+5.00
Φ4.0x330
4.0
+0.40/+0.20
330
0~+5.00
Φ4.5x330
4.5
+0.40/+0.20
330
0~+5.00
Φ5.0x330
5.0
+0.45/+0.20
330
0~+5.00
Φ5.5x330
5.5
+0.45/+0.20
330
0~+5.00
Φ6.0x330
6.0
+0.45/+0.20
330
0~+5.00
Φ6.5x330
6.5
+0.45/+0.20
330
0~+5.00
Φ7.0x330
7.0
+0.45/+0.20
330
0~+5.00
Φ7.5x330
7.5
+0.45/+0.20
330
0~+5.00
Φ8.0x330
8.0
+0.45/+0.20
330
0~+5.00
Φ8.5x330
8.5
+0.45/+0.20
330
0~+5.00
Φ9.0x330
9.0
+0.45/+0.20
330
0~+5.00
Φ9.5x330
9.5
+0.45/+0.20
330
0~+5.00
Φ10.0x330
10.0
+0.50/+0.20
330
0~+5.00
Φ10.5x330
10.5
+0.50/+0.20
330
0~+5.00
Φ11.0x330
11.0
+0.50/+0.20
330
0~+5.00
Φ11.5x330
11.5
+0.50/+0.20
330
0~+5.00
Φ12.0x330
12.0
+0.50/+0.20
330
0~+5.00
Φ12.5x330
12.5
+0.50/+0.20
330
0~+5.00
Φ13.0x330
13.0
+0.50/+0.20
330
0~+5.00
Φ13.5x330
13.5
+0.50/+0.20
330
0~+5.00
Φ14.0x330
14.0
+0.50/+0.20
330
0~+5.00
Φ14.5x330
14.5
+0.50/+0.20
330
0~+5.00
Φ15.0x330
15.0
+0.60/+0.20
330
0~+5.00
Φ15.5x330
15.5
+0.60/+0.20
330
0~+5.00
Φ16.0x330
16.0
+0.60/+0.20
330
0~+5.00
Φ16.5x330
16.5
+0. 60/+0.20
330
0~+5.00
Φ17.0x330
17.0
+0.60/+0.20
